Anti-haze Mesh
Water-proof & anti-dust / anti-haze / anti harmful gas in the fog
Based on intensive hydrophobic technology and electrostatic adsorption technology, the mesh can block haze and waterdrop to achieve the daily anti-dust and anti-haze function for window screen.
Product Description
★Product Features
High-definition Vision
Use pinhole imaging theory to keep the meshes transparent and not to obstruct the view. Good permeability of light.
Anti micro dust and haze
Based on electrostatic adsorption technology, the mesh can effectively block and filter haze.
Hydrophobic technology to block rainwater
The water-proof coating gives a low tension on the surface, and adds the functions of hydrophobicity and antifouling. The raindrops will slide down the window screen without drifting into room.
★Product Details

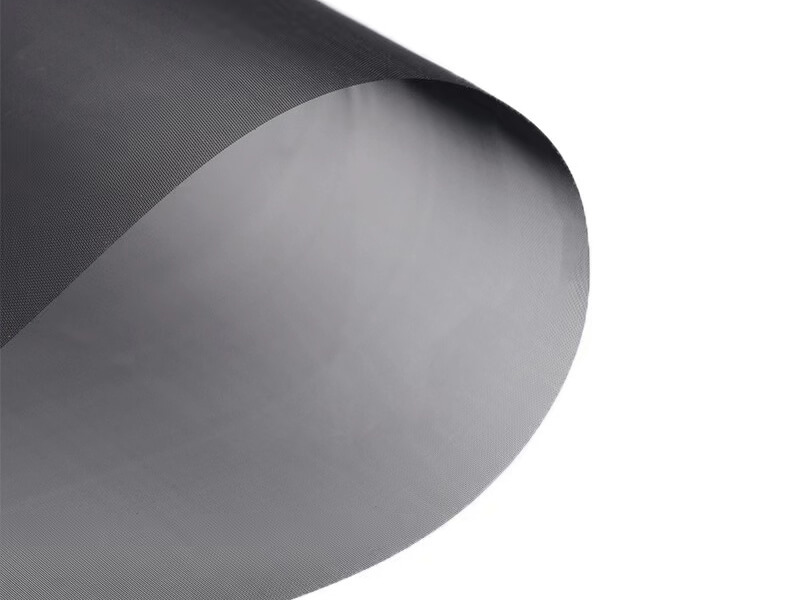

High-grade texture
Based on excellent weaving technique, the mesh is neat and exquisite.
Adsorb micro granule
Based on electrostatic adsorption technology, the mesh will form a stable magnetic field when it has friction with air.
The micro granule at same level of charge and microorganism will be blocked and stay outside.
| Anti-haze Mesh Technical Parameters | ||
| Item | Requirement | |
| PM filtration coefficient | ≥80% | |
| Tensile property (random direction) | Breaking strength | ≥200N |
| Elongation at break | ≥6.0% | |
| Bursting strength | ≥580N | |
| Durability | UV aging resistance | Bursting strength loss rate ≤10% |
| Low temperature resistance | Bursting strength loss rate ≤10% | |
| Low temperature resistance | Bursting strength loss rate ≤10% | |
| Transmission of light (transmittance) | ≥20% | |
| Air permeability | ≥1000mm/s | |
| Combustion performance | Damaged length | ≤2cm |
| Afterflame time | ≤5s | |
| Duration of fire resistance | ≤5s | |
| Oxygen index | ≥30% | |

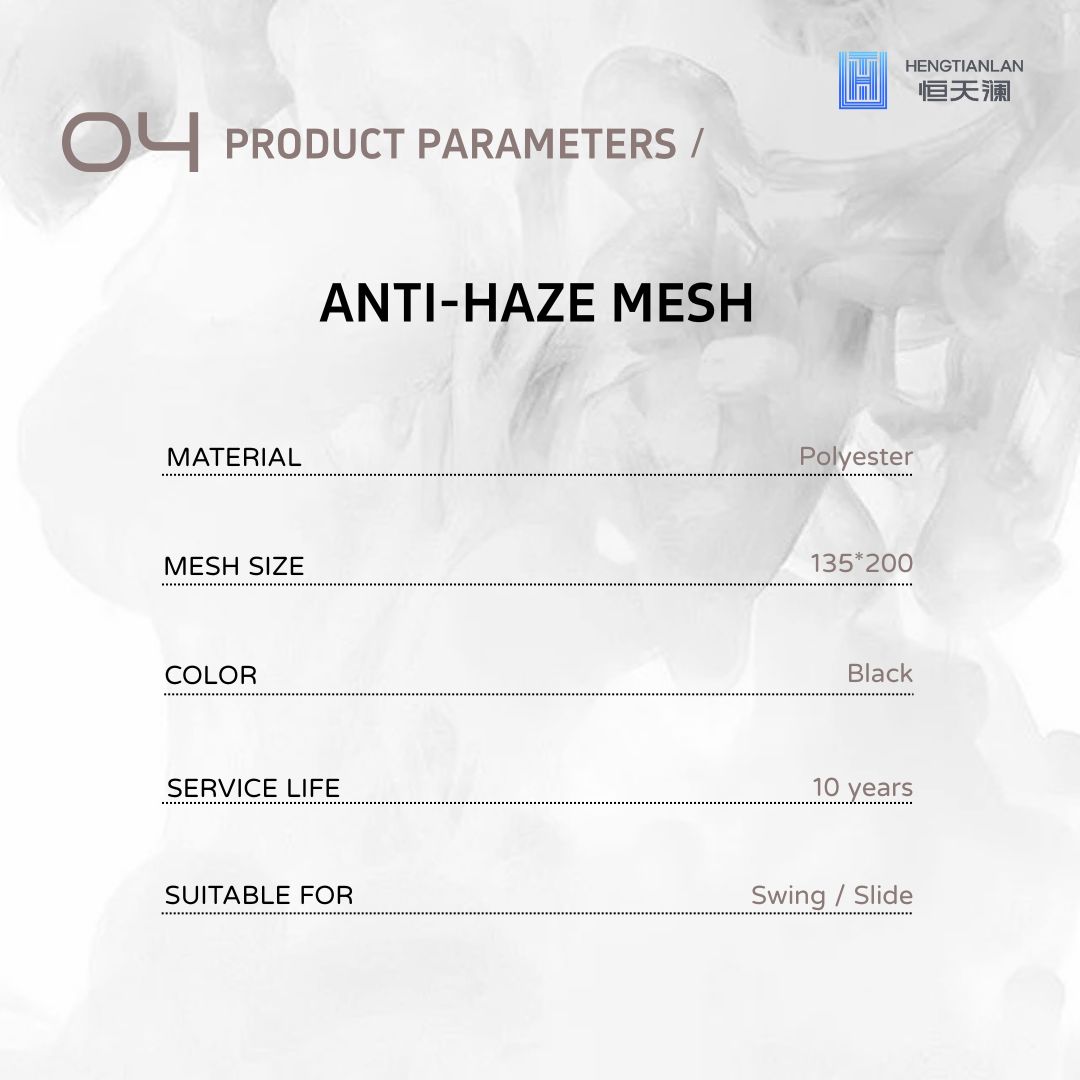

★Product Parameters
| Material: | Polyester | Mesh size: | 135×135 / 200×200 |

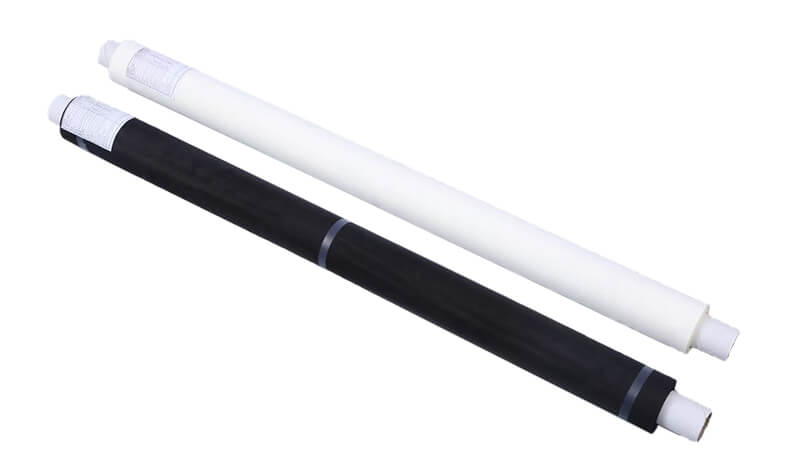

| Color: | Black / white | Apply: | Flat-open/ slide |
| Service life: | 10 years |
