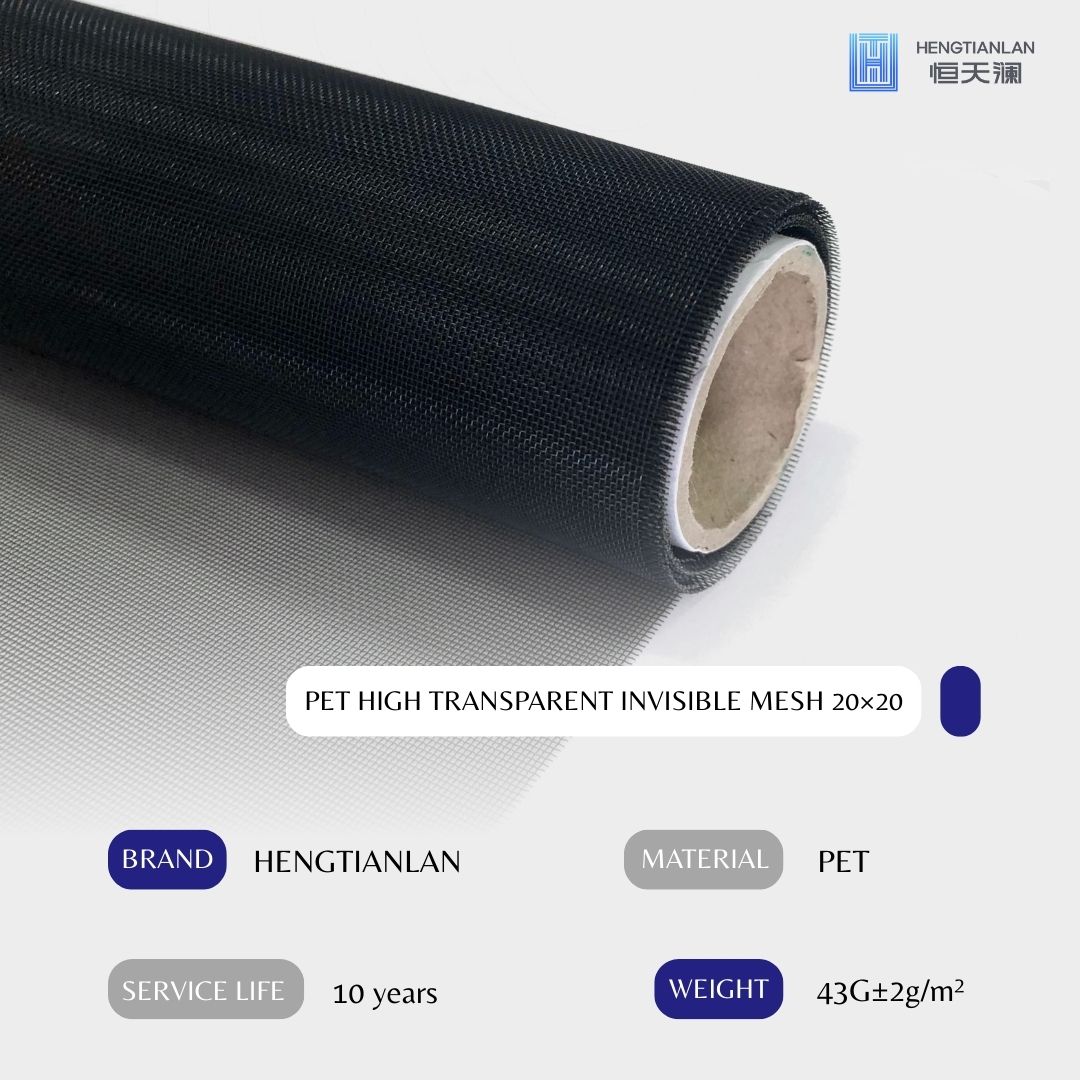

PET High Transparent Invisible Mesh 20×20


High-transparent / flat & smooth / non-sloughing / anti-dust / oil-free



The product is made of macromolecule carbon fiber, so the mesh is extremely fine. By adopting the high temperature setting technology of special coating, it has the anti-photoaging function on the surface.

It’s a high-performance mesh product that combines the features of high transparency, ultra thinness, anti dust and easy to clean.


CONTACT US DOWNLOAD
Product Description


Product Features

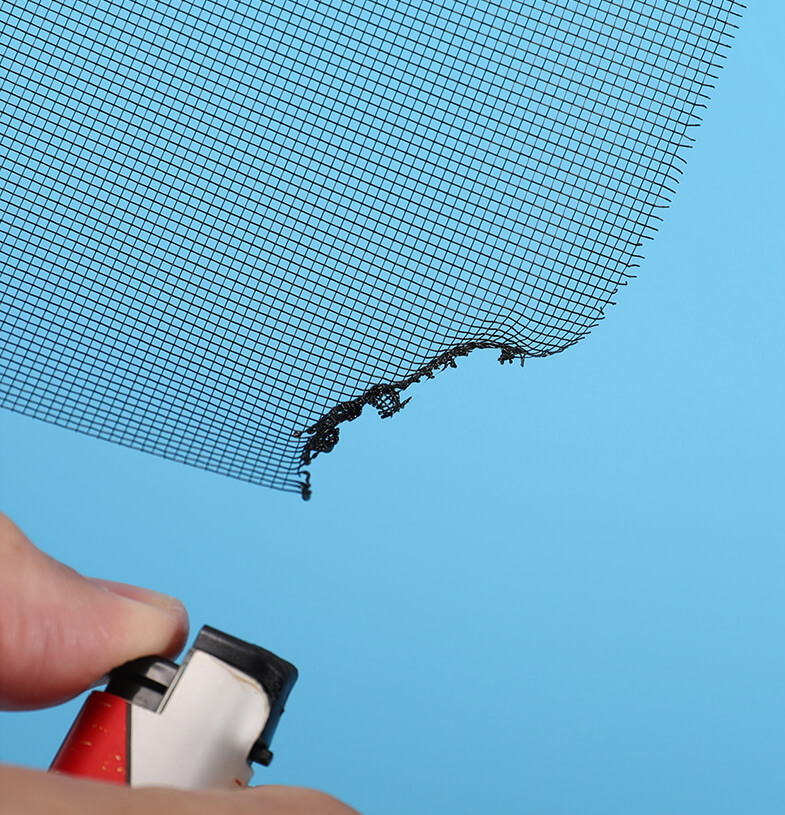

Good Flame Retardancy

Excellent flame retardant performance to halt the fire's spread that meets  FMVSS-302 by U.S.A.



Easy to Clean

The mesh can prevent dust. It’s easy to clean, and colorfast with daily cleaning.

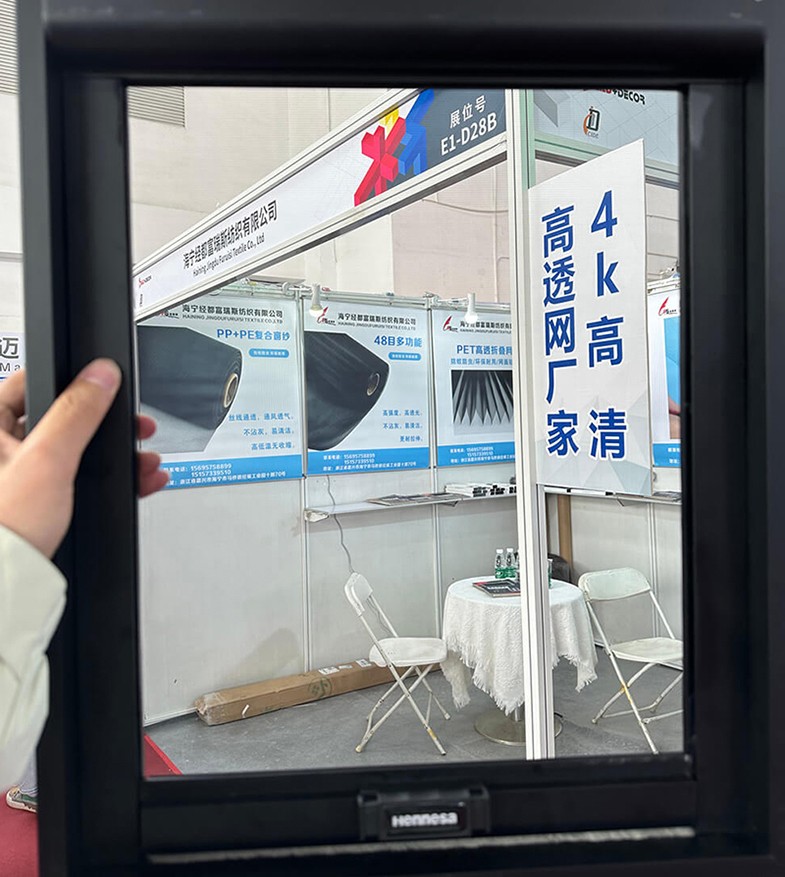

High-definition Vision

Use pinhole imaging theory to keep the meshes transparent and not to obstruct the view. Good permeability of light .



Good weather resistance

Complies with IOS 4892-3-2016

500h detection time = service life 5 years

Under the high temperature condition of 95 °C, the screen does not oxidize, shrink or deform

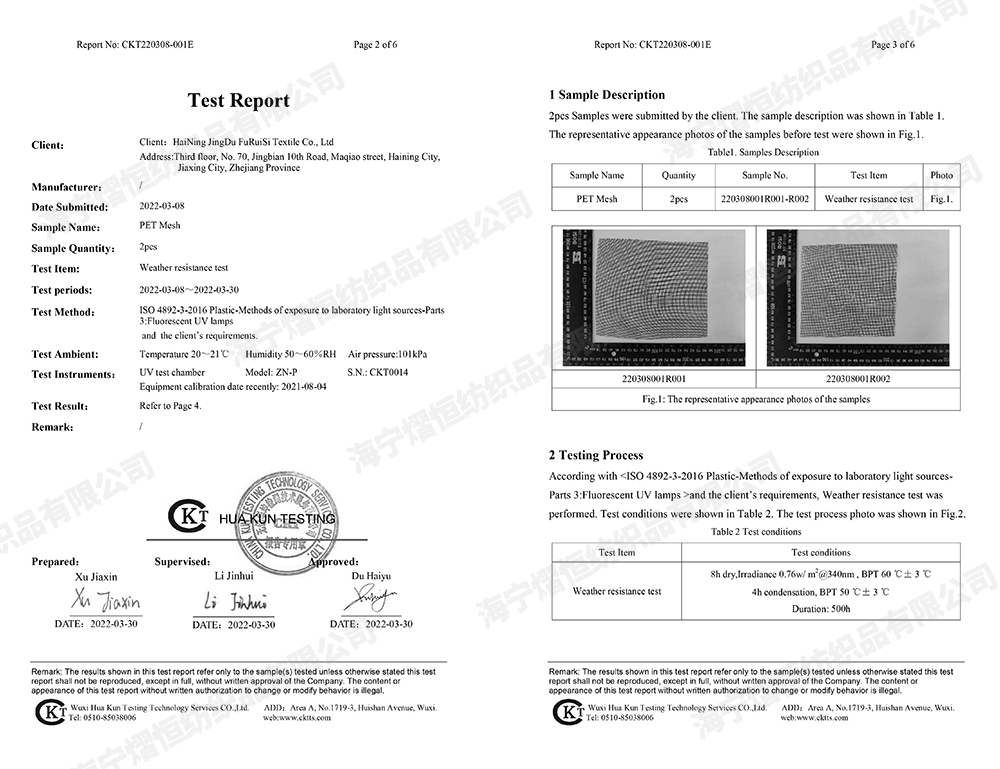

CKT220308-001E 耐候性 英文-3水印.jpg

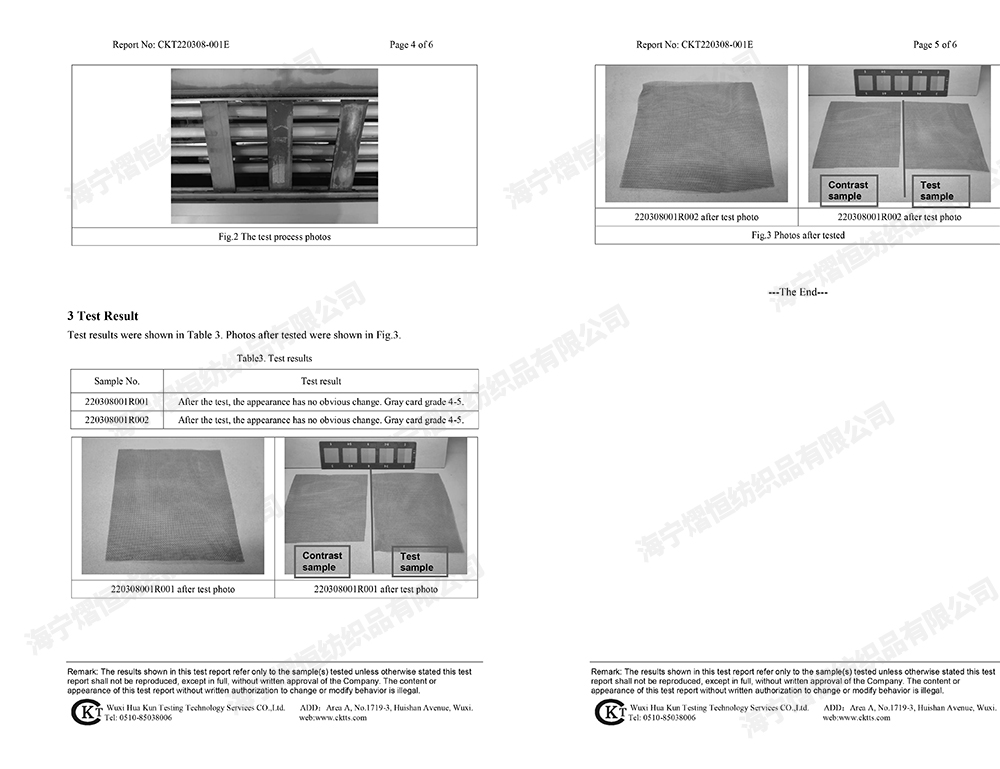

CKT220308-001E 耐候性 英文-4水印.jpg


Product Detail

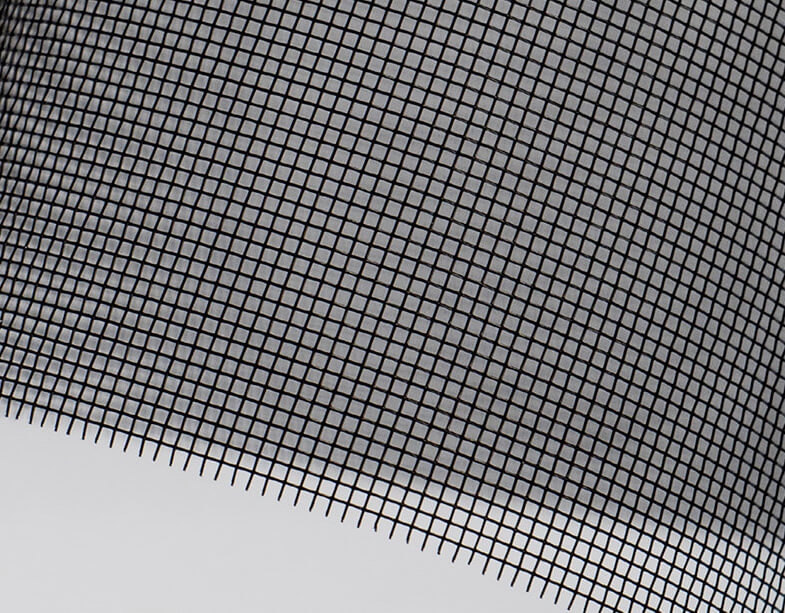

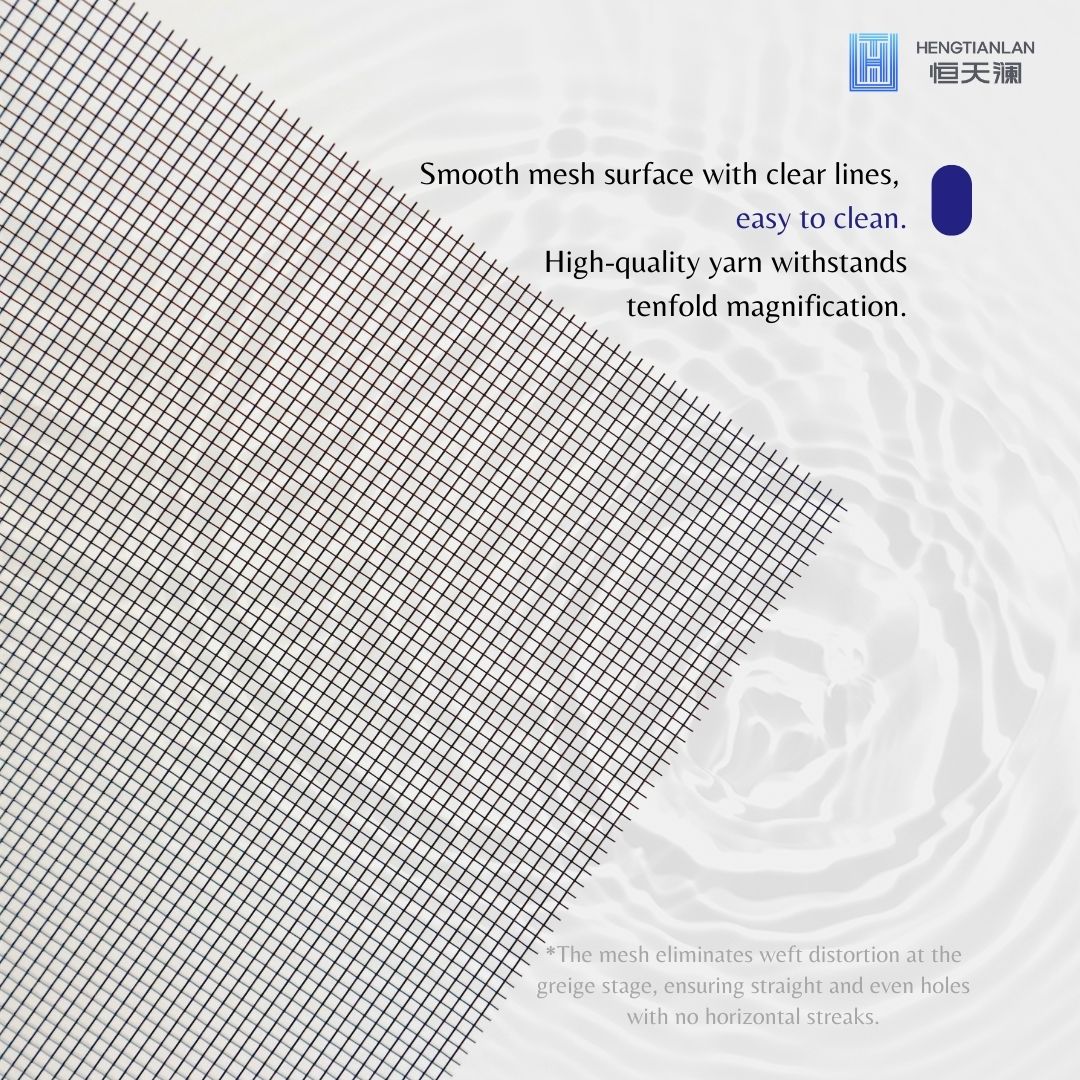

Even-distributed yarn

Plain weave process and single yarn drawing to guarantee the appropriate size and even-distributed meshes

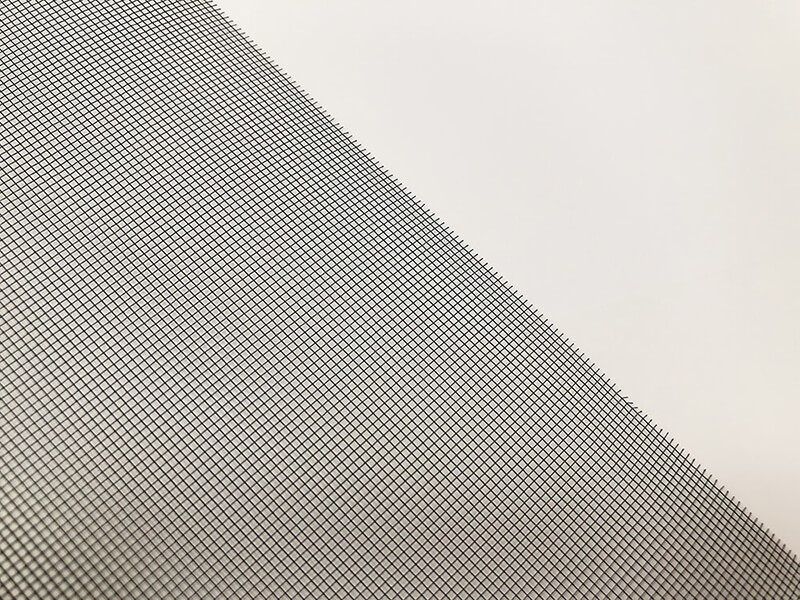

Mesh standard

The mesh is horizontal and vertical, there is no large and small grid, and there is no road crossing problem.


09产品细节-标志 英文.jpg

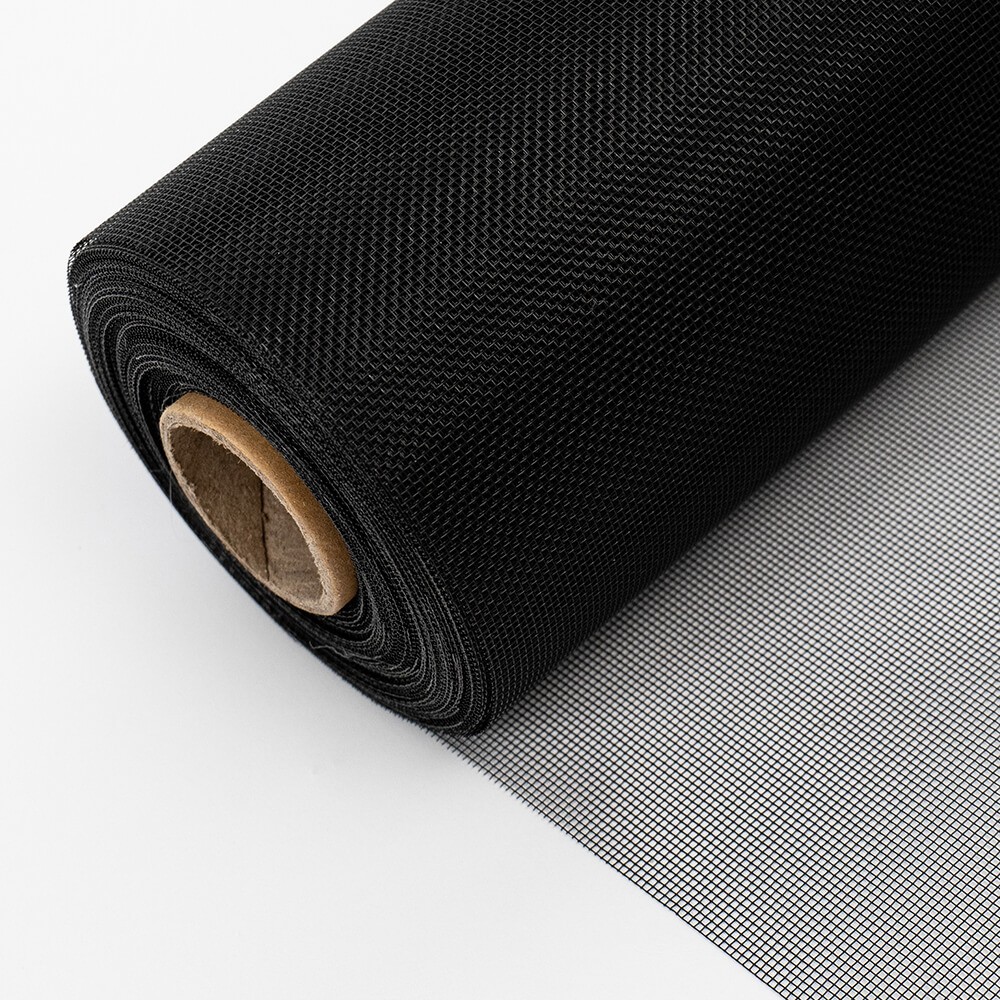

Product Parameters


Fibre type:PolyesterYarn quality:A level
Spinning proces:Single yarn drawingWarp thread density:20
Weft thread density:20Warp thread fineness:0.175mm
Weft thread fineness:0.135mmWeave:Plain weave
Weight fabric (g/m2):43G±2Shrinkage (%):0.1% below 50℃
Coating:NoYarn dyed:Yes
Piece dyed:NoDyeing process:Color masterbatch
Color fastness to light:Level 4.5Color:Black / Customized
Width:0.8m-1.5m / 50mPacking:Carton

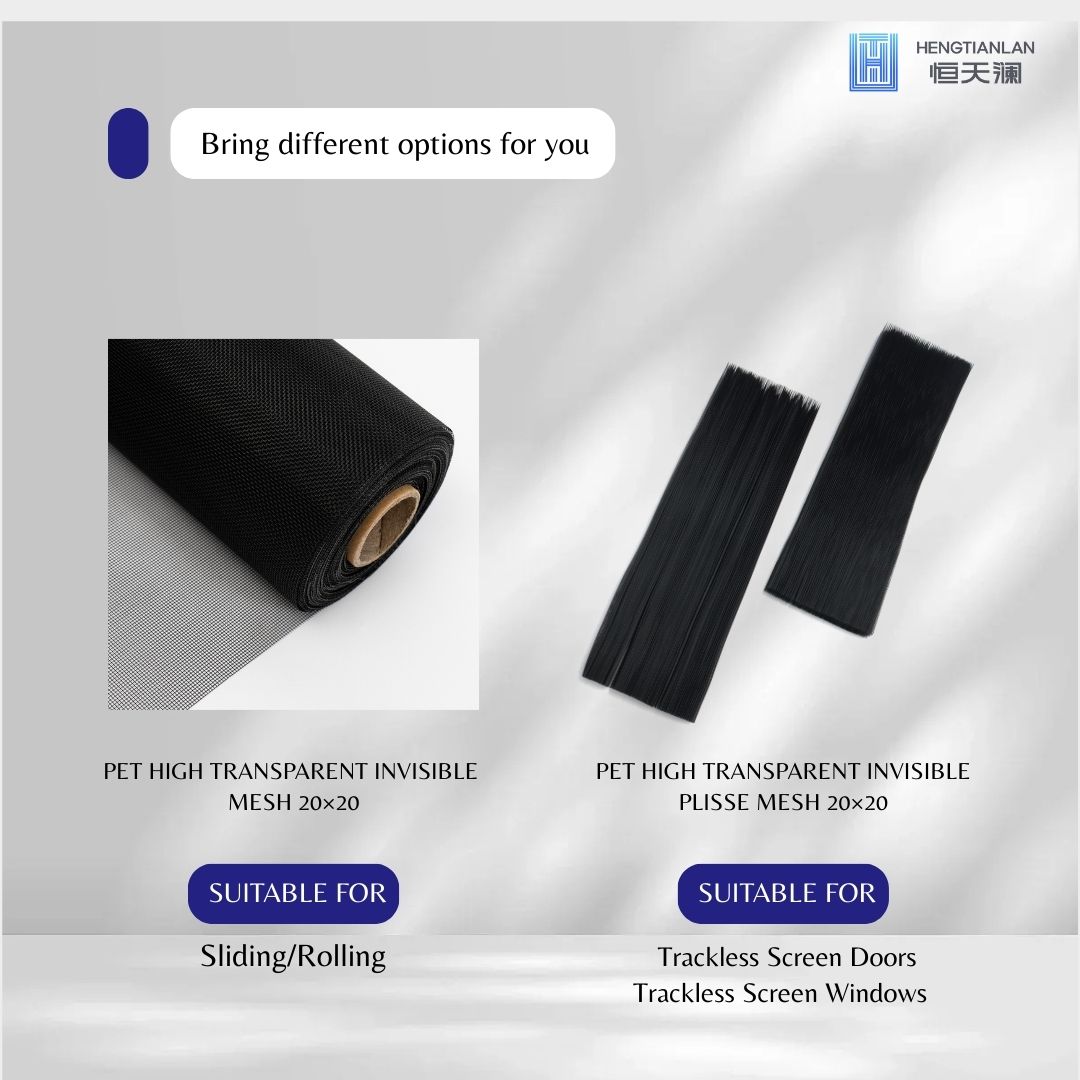

Apply:Slide/ scrollService life:10 years
